The project was one of our most ambitious project. Designed and built for very special friend. We've been friends for a couple of years and from that we could say he is one of the most curious graphic designer we know.
The bike was designed over dozens of questions on his head, he is a kind of person who always wonder how to put ideas and function at the same place. It’s always intrigue us when we meet persons who have visions and dreams, their vibes is always inspired us to build something that’s not only good but also meaningful.

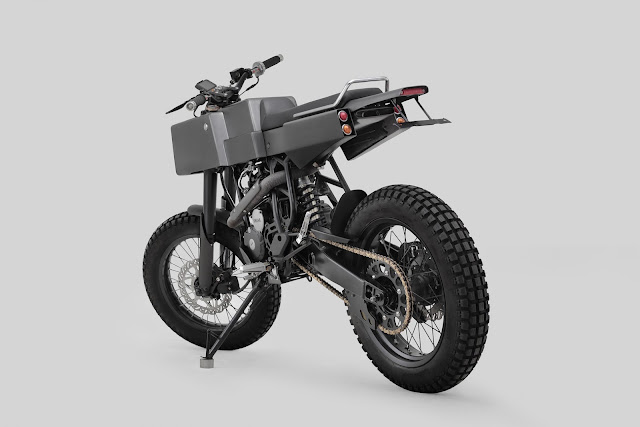

So we strated it by creating the whole new sub frame for this little 2008 Yamaha Scorpio to achieve a clean looks under the seat and maximazing the horizontal grid. We pick an aluminum plate for the whole body panel needs in purpose to reducing the weight in a thick material plate. The engine was in a good condition when she came at our front door, but then a few parts got new replacements, and renewed the gaskets after we put it on a vapor blasting treatment to add some contrast and more value to the bike itself before the coloring phase begin. Then we add PE 28 Carburetor so now she can breath more fresh air and we covered the custom made stainless steel exhaust with a black exhaust wrap

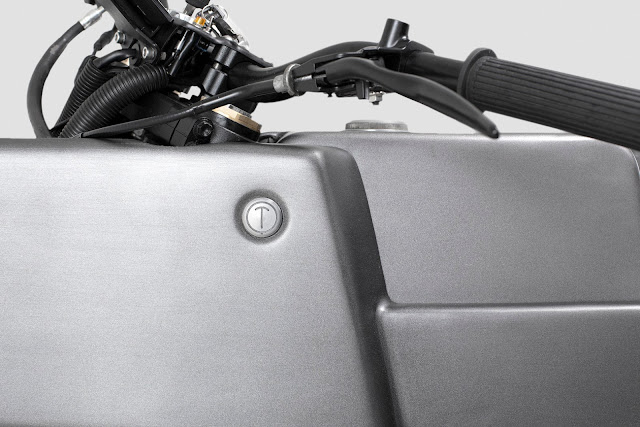

To ensure more control, we use a fatbar handlebar completed with the custom clucth and brake lever, custom dashboard with a light indicators and GPS mounting, custom light switch and start button, ended with the custom bar-end turn signal to keep a clean look on bar area. In front suspension, we used a set of Honda’s upside down forks, but we had to modified the triple trees and steering column to make it fit perfectly on a Yamaha’s chassis. For the rear, we used a Yamaha’s swingarm pair it with Showa Monoshock Suspension on a custom made unitrack system.
For her shoes we used a pair of 18” spoke rims wrapped with Kenda’s Trial Tread Tyre and controled by a pair of new disc brake system on a aftermarket trial hubs. We modified the original footstep by adding some detail to enhace the grips and pairing it with the chrome shifter and brake control. Then we add a custom made skid-plate to cover the engine from dirts and rocks while she goes travelling around. There only two main colors on this bike, Gun Metal Grey on top of brushed metal finish at the aluminum panel, and black for the rest of the bike. We used 3 different black powder coat texture.
